1. Greenhouse Specifications & Design Rationale

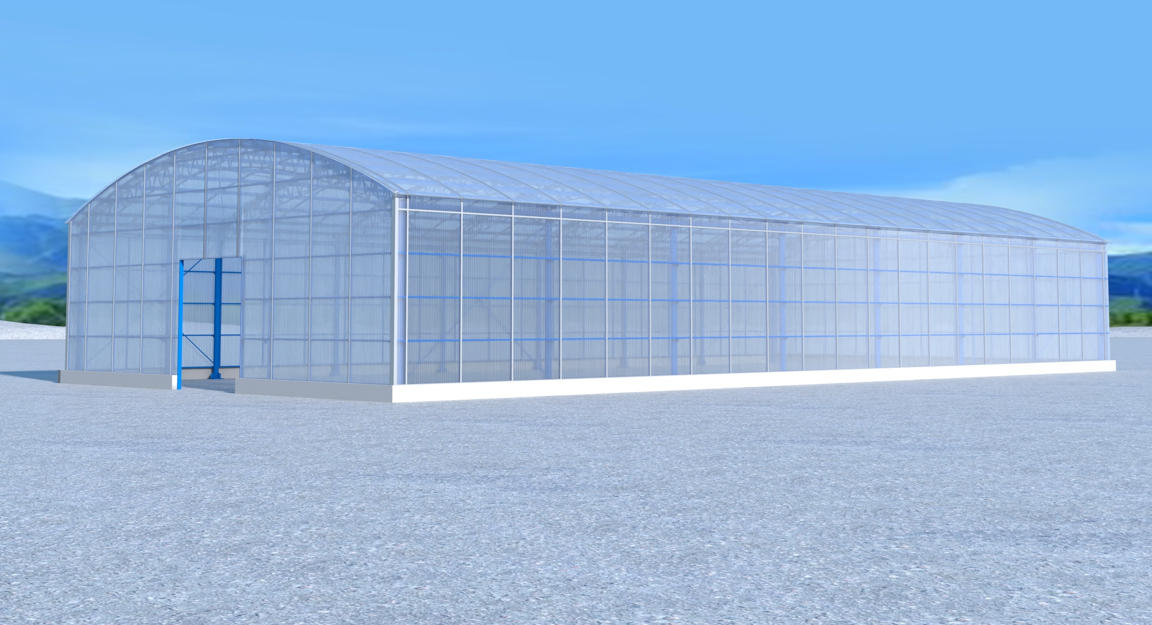

The greenhouse boasts a substantial footprint: 22 meters in width, a total length of 42 meters, and a height of 6 meters. The internal growing beds measure 10 meters in width, with approximately 1.2 meters allocated for pedestrian access. The 42-meter length was determined based on Joshua's anticipated production output. The 6-meter height accommodates 5-meter-high growing beds, leaving a 1-meter clearance. The arched design is structurally efficient to model and was a recommendation based on the client's initial concept. Joshua initially considered a heavy-duty H-steel framework. However, I advised against this, recommending a trussed arch structure. This approach significantly reduces construction costs compared to a portal frame.

2. Material Specifications: Optimized for Durability and Cost-Effectiveness

The primary structural elements incorporate the following materials: Support Columns: Double-layered columns with an outer diameter of 110mm and an inner diameter of 60mm, spaced 400mm apart. This double-column configuration is crucial for wind resistance. The 110mm diameter alone can handle self-loads (both static and snow loads) without issue. The inner column isn’t to bear downward force but is to primarily resist lateral wind loads. Top Arch Beams: Constructed from 60mm diameter round tubes to form the primary arch structure. Purlins (Roof Supports): 40mm x 80mm rectangular tubing. Exterior Wall Cladding: Polycarbonate (PC) hollow panels. PC is preferred over plastic film due to its extended lifespan and superior wind and snow resistance. Its lighter weight is a significant advantage compared to glass, which the steel structure wouldn’t reliably support. While solid PC panels offer greater transparency, they lack the insulation performance of the hollow panels. Cost-Benefit Analysis: Despite the potentially lower initial construction costs of plastic film greenhouses, the ongoing costs of replacement labor and materials make them less economical in the long run.

3. Construction Technical Considerations – Critical for Longevity

Successful construction of this greenhouse hinges on several key technical elements: Waterproof Foundation Wall: A mandatory waterproof foundation wall is required to prevent ground moisture intrusion. Neutral Structural Adhesive: Absolutely no acidic structural adhesives are permitted. Only neutral-cured adhesives should be used. Full Welding & Sealing: All steel framework connections must be fully welded. Non-critical weld points should be double-welded and subsequently sealed with foam sealant to prevent moisture ingress into the steel tubes. Weld seams must be coated with anti-rust paint.

4. Maintenance & Preservation – Ensuring Long-Term Performance

Regular maintenance is vital to maximize the greenhouse's lifespan: Cleaning: Roof and wall surfaces should be cleaned using only fresh water. Abrasive cleaning methods should be avoided to prevent scratching the panels and reducing light transmission. Annual Inspection: Annually, inspect the roof for leaks and check for structural adhesive cracking. Address any issues promptly to maintain waterproofing integrity. Weld Inspection: Periodically check weld seams for cracks and paint degradation. Touch up any damaged areas to prevent rust.

I have also designed steel walkways and exterior staircases in Houston, offering full 3D modeling and rendering visualization services. Please reach out with any outdoor architectural challenges – I’m happy to provide assistance. My expertise lies primarily in outdoor structures; please refrain from requests related to interior design.
