1. Warehouse Dimensions & Layout

The defining characteristic of this warehouse is its open-air design – it lacks perimeter walls and wall-mounted purlins (horizontal beams supporting the roof). Our client, a steel distributor, previously relied on manually covering their stock with tarpaulins during rain, a time-consuming and inefficient process. This open design facilitates easy loading and unloading of materials. Span: 20 meters (approximately 65.6 feet). This allows for the storage of steel up to 9 meters (approximately 29.5 feet) wide on either side, with a central aisle of over 1 meter (approximately 3.3 feet) for pedestrian access. Total Length: 36 meters (approximately 118 feet). Bay Spacing: 6 meters (approximately 19.7 feet) between columns. This creates a consistent grid pattern for the layout. Column Height: 7 meters (approximately 23 feet). This allows for convenient operation with forklifts, with approximately 3 meters (approximately 9.8 feet) of usable storage height below. Open Sides: Critically, the absence of walls allows for loading/unloading from both sides and the central aisle.

2. Material Specifications

The structural integrity of the warehouse relies on carefully selected steel members. Columns: 220mm diameter (approximately 8.7 inches) circular steel pipe, serving as the primary vertical supports. The diameter was chosen for strength and ease of fabrication. Roof Trusses: A composite, arched truss system was used. This design allows for long spans while distributing weight effectively. The trusses are triangular and consist of: Top Chords: Two 60mm diameter (approximately 2.4 inches) steel bars. Bottom Chord: One 75mm diameter (approximately 3 inches) steel bar. Vertical Web Members: 50mm diameter (approximately 2 inches) steel bars, connecting the top and bottom chords. Diagonal Bracing: 40mm diameter (approximately 1.6 inches) steel bars, providing stability against lateral forces. Base Plates: 22mm diameter (approximately 0.9 inches) solid steel round bars welded to the bottom of the columns for secure attachment to the foundation. Tie Rods: 60mm diameter (approximately 2.4 inches) steel pipe, used for horizontal stability. Horizontal Bracing: 22mm diameter (approximately 0.9 inches) steel round bar. Column-to-Column Bracing: Also 22mm diameter (approximately 0.9 inches) steel round bar. Roof Purlins: 50mm x 100mm (approximately 2 inches x 4 inches) rectangular steel square tubing. These support the roof sheeting.

3. Roofing Material

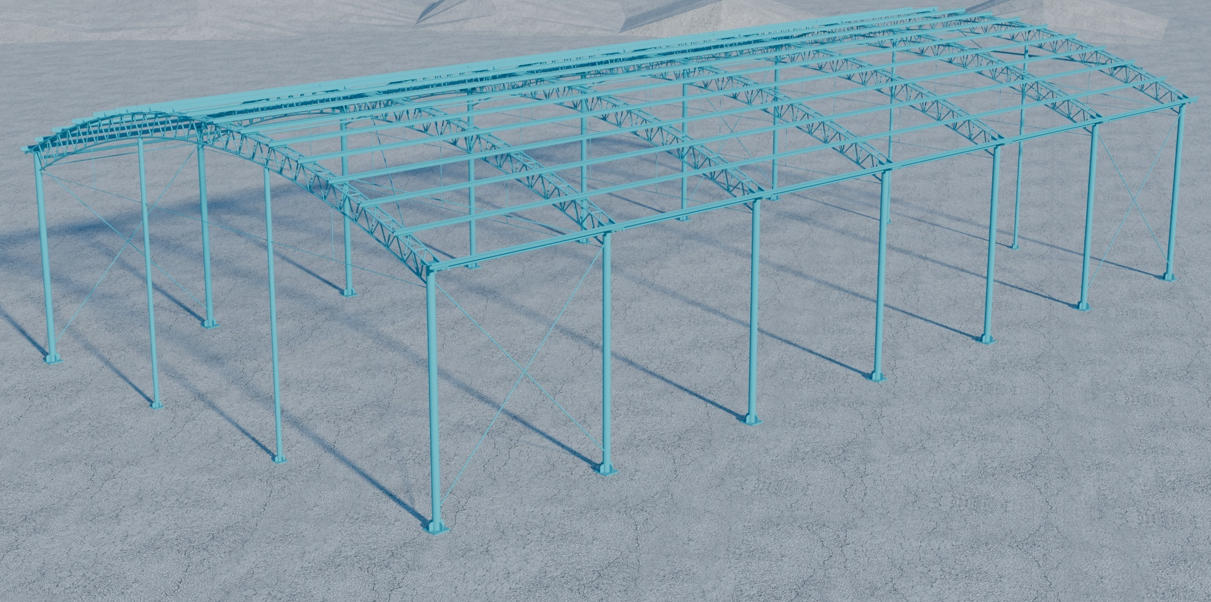

Sheeting: Corrugated steel sheeting with a thickness of 0.6mm (approximately 0.024 inches). This is a standard gauge for the Chicago climate, providing a balance of weather protection and cost-effectiveness. A thinner gauge would be inadequate to withstand Chicago’s wind loads. Color: Blue roofing. (Note: The rendering depicts the structure without the roofing to showcase the steel frame’s design.)

4. Key Structural Details & Foundations – Critical for Chicago Conditions

The foundation is paramount for this design, particularly given the open structure. The wind loads are significantly higher than those experienced by enclosed buildings. Foundation: The foundation must be exceptionally robust. Footings: Minimum dimensions of 1.5 meters x 1.5 meters (approximately 5 feet x 5 feet). Depth: Minimum depth of 1 meter (approximately 3.3 feet). Pre-Embedded Steel Plates: Pre-fabricated steel plates are embedded within the concrete foundation to allow for the welding of the columns. Reinforcing Plates: Additional reinforcing plates are necessary for added strength. Bracing is Non-Negotiable: Horizontal bracing, tie rods, and column-to-column bracing must be included. These components are vital for resisting deformation and maintaining structural stability – do not compromise on these! While these components utilize relatively less steel, they are essential for the warehouse's overall integrity. Many design renderings neglect these critical details, leading to instability if built as depicted. Importance of Structural Understanding: It's crucial for designers to understand the underlying structural principles. Simply creating aesthetically pleasing renderings isn't enough; the design must be structurally sound.

I have extensive experience in Chicago and other locations, specializing in 3D modeling, architectural rendering, and animation. While I'm proficient in CAD, my expertise lies in three-dimensional design. I’m available to consult on warehouse construction challenges.
