This project represents an early architectural visualization and design case from my portfolio. It's a manufacturing workshop for a wood furniture factory located in Brooklyn, New York, and showcases my ability to quickly and effectively translate client vision into compelling visuals.

The client, James, a passionate woodworking enthusiast and skilled fabricator, required a substantial, unobstructed interior space of 52 feet in height to accommodate large-scale machinery and equipment. The factory's dimensions are 118 feet wide and 300 feet long. The structural system comprises a triangulated steel truss framework utilizing welded steel tubing, supported by double rows of robust steel columns. A band of horizontal clerestory windows runs along the upper portion of the exterior walls, while ventilation and light openings are strategically positioned within the waterproof facade.

James’s hands-on approach to construction meant he would be personally fabricating the building, sourcing materials and employing a small team of assistants. He needed high-quality visualizations to present his plan to business partners and to accurately specify equipment. He initially approached several local architectural rendering firms, but was frustrated by their lengthy turnaround times (3-4 weeks). I was able to deliver a complete package within just 4 hours – including exterior renderings, an immersive VR walkthrough of the interior, and a short architectural animation.

Recognizing that James had a less clear picture of certain construction details, I proactively created a detailed CAD node diagram to clarify complex aspects of the design. This ensured a shared understanding and facilitated the construction process.

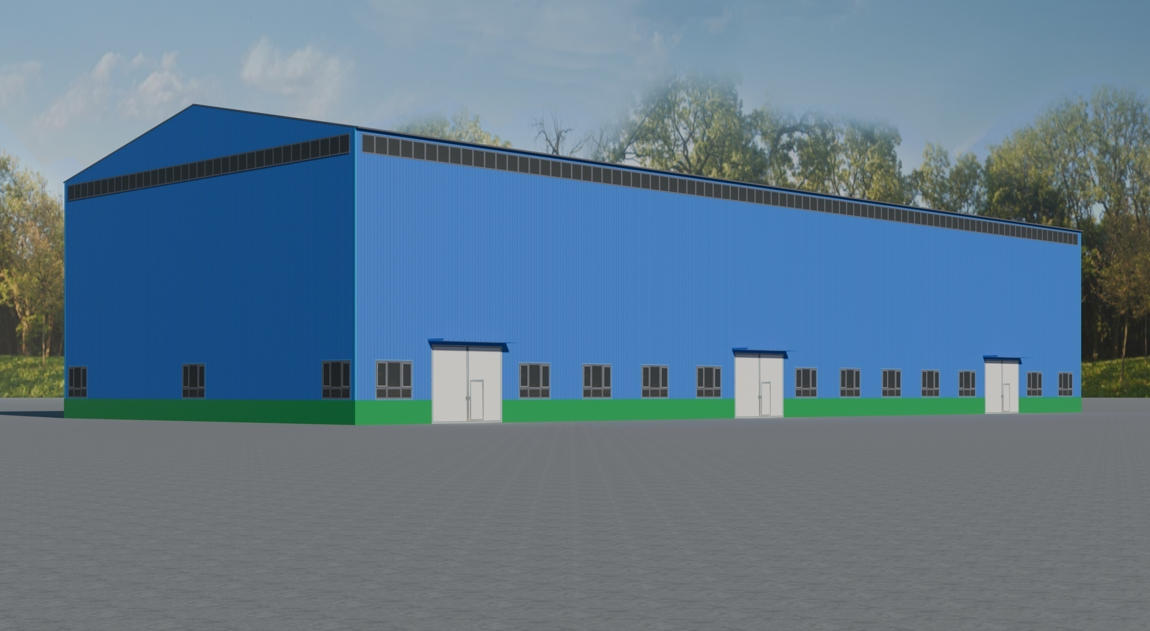

While James expressed interest in visiting the site, I explained my preference for a streamlined workflow: “Just provide me with a site photo, a rough sketch with dimensions, and a description of the building's style and intended use. That’s all I need to understand the scope of the project.” He supplied this information, and while we iterated on the exterior color palette three times (eventually settling on a sky-blue wall paneling contrasted with green exterior paint), he was ultimately very pleased with the results.

It’s important to note that the rendering focuses solely on the newly constructed factory itself. While the site likely included exposed lumber piles and woodworking equipment, these elements were intentionally omitted from the visualization to avoid visual clutter and to keep the focus squarely on the architectural design. This is standard practice for industrial building visualizations; the goal is to showcase the building, not the surrounding disarray.

We lost contact for a while, as James moved on to other ventures in New York and the woodworking factory was sold. He later contacted me about a glass restaurant project, but when I requested further details, he didn’t respond. This Brooklyn factory design remains a valuable example of my ability to quickly deliver impactful visualizations and provide crucial design support.

I’m available to assist with technical questions regarding steel structure design. Please feel free to reach out – I’m happy to offer my expertise.

This article was written by Zhang Teng and is protected by copyright. Unauthorized reproduction is prohibited.
