1. Architectural Parameters:

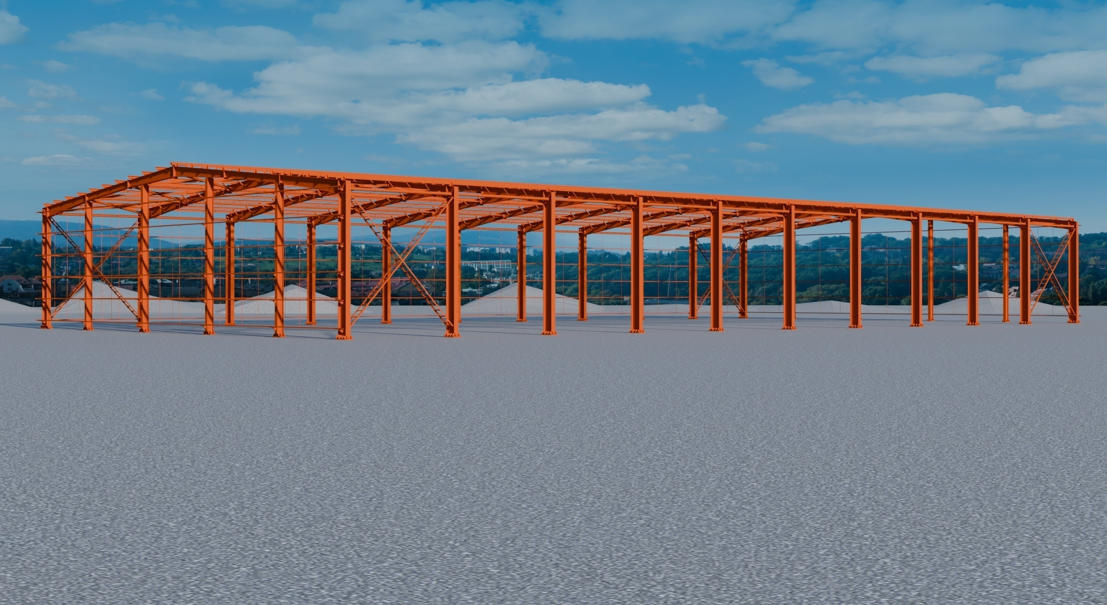

The building's width is 30 meters, and its total length is 60 meters, with a bay spacing of 6 meters, resulting in 10 bays. The column height is 6 meters, and it features a dual-sloped roof (gable roof). The steel frame is orange, the roof is blue metal tile, and the wall cladding consists of green metal fencing. Wall purlins are spaced 1.5 meters apart, and roof purlins are spaced 1.2 meters apart. The tighter spacing of the roof purlins is intentional. Based on the natural environment of the San Antonio area, smaller purlin spacing provides better resistance to deformation caused by strong winds.

2. Architectural Characteristics:

Buildings with open walls—lacking traditional wall panels—are inherently the most hazardous. This is because wind forces act on the roof from below. Therefore, the paneling material must be of a high standard, and the roof purlins even more so. For a 6-meter bay spacing, 140mm purlins are generally sufficient; however, for open-air structures, 140mm is significantly undersized. 180mm x 70mm purlins are required instead. If the purlins are too small, the roof deflects excessively. In high winds, the entire roof will sway back and forth. Over time, this can lead to connection bolt failures and the loss of roofing panels.

3. Key Design Considerations:

Column bracing is absolutely essential. It primarily prevents lateral displacement of the columns. Tie rods and horizontal bracing are crucial components for maintaining roof stability. As a seasoned architectural designer, I am acutely aware of this. Many clients try to save on materials. I understand this mindset, but these three components cannot be compromised. They don’t even require a significant amount of steel themselves, but their function is substantial. True savings come from structurally sound design. For example, adding gusset plates is an excellent cost-saving measure. They effectively prevent the flange of the steel beam from warping outward, allowing for the use of smaller steel beams, which significantly reduces the overall steel quantity. Adding intermediate columns (intermediate columns) is also a good option when feasible, as they greatly reduce material consumption.

4. Designer's Recommendations:

When planning to construct a steel structure, avoid blindly copying neighboring examples. A dedicated load calculation is necessary. Every site has unique conditions. While a neighbor’s construction method may be viable, yours might not. Calculations are required to prevent potential collapse. The primary calculations should include foundation settlement, constant load, live load, wind load, and snow load. Also, don’t skimp on the fire-retardant coating for the steel. These are all necessary precautions. I am Zhangteng, a steel structure rendering designer. If you have any technical challenges with your exterior engineering projects, feel free to consult me. I’m happy to help. I can also share my expertise in 3D modeling, architectural rendering, and architectural animation.
